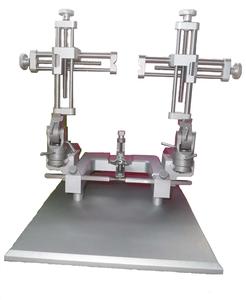

dual stereotaxic instrument
material: stainless steel
Brand: J&K seiko
Latest price:
PART No: SJK-002

The Lab Standard Stereotaxic Instrument,  is ideal for researchers in need of a versatile, reliable instrument for stereotaxic procedures with small animals. Precision alignment when using the Lab Standard ensures accurate placement of electrodes, micropipettes, and other devices.

The time-proven ‘U’-Frame design concept, sturdy construction, and adaptability to most model species make this the best choice for a stereotaxic instrument.


Easily Read Scales

All scales are oriented to be read easily from the open end of the ‘U’. This is the position from which most scientists prefer to work. The numerals on the scales are larger, and therefore more easily read. The scale lines are laser engraved, to allow finest possible permanent marking of scales on all 3 axes. Precise alignment with facing vernier scales gives accurate resolution to 0.1mm.

Smooth Movements
The Lab Standard’s  exclusive, triple lead screws allow the fastest positioning possible, consistent with lining up the scales easily at a given coordinate.

Versatility of Positioning
The manipulator arm controls medio-lateral and vertical positioning via lead screws, and antero-posterior movement via dovetail slide movement, with 80 mm of travel possible in each direction. A Universal Joint allows the investigator to change the angle of the probe up to 90o in either the antero-posterior or medio-lateral planes. The improved locking mechanism on the Lab Standard™ will hold any angle position without slippage. And of course, it also provides anabsolute lock at 90overtical.

In addition, a swing joint allows the investigator to conveniently swing the manipulator arm and probe out of the way for performing a procedure — then reliably return the probe to the same point.

Convenient for Electrophysiology
Integral brass bushings in the manipulator arm allow grounding directly to the closest metal on the manipulator arm — even the probe holder.

Included Components
Both the single and dual  include the U-frame base plate, manipulator arm(s), standard probe holder(s) with corner clamp, and Rat Adaptor (nose clamp assembly and special taper ear bars).  one side is  non-puncture 45° ear bars  and one side is  18° ear bars.

Selection of Accessories
Species adaptors are available to fit rat, cat/monkey, dog/monkey, mouse, guinea pig and small bird. Probe holders and species adaptors for ‘U’ frame stereotaxic instruments from other manufacturers are generally compatible with the Lab Standard frame.
